geogage | V.W Load Cell

When installing in Earth Anchor, process the wale in advance according to Load Cell standard.
(To prevent Flange of wale and strain of Web, you should install Stiffener.)

Connect the Cable and then record zero using measuring instruments.

Place bottom loading plate, load cell, top loading plate and distribution plate in order on the Processed wale to be vertical to Anchor.
At this point, note that Anchor line should not reach to the wale or cell.

After pulling with Expected Axial load using stress tensile machine, install Anchor.
At this point, note that eccentric should not be on Load Cell, to minimize the loss of Prestress,
if using Oil Jack, insert male cones after several hours(Soil : 5min., Rock : 2min.) under the maximum pressure.

When pulling, measure the stretched amount and check the status of Earth Anchor by comparing with the planned amount

Model	L4000, L4000S
Rated Capacities	100ton ~ 150tons (Others per customer’s requirement)
Over Range Capacity	150% full scale
Sensitivity	± 0.025%
Resolution	0.025% full scale minimum
Accuracy	± 0.5% to ± 1% full scale (in case of high capacity, ±0.5 to ±1% full scale)
Temperature Range	-20℃~ +80℃
Excitation Method	pluck or sweep

V.W Load Cell

V.W Load Cell

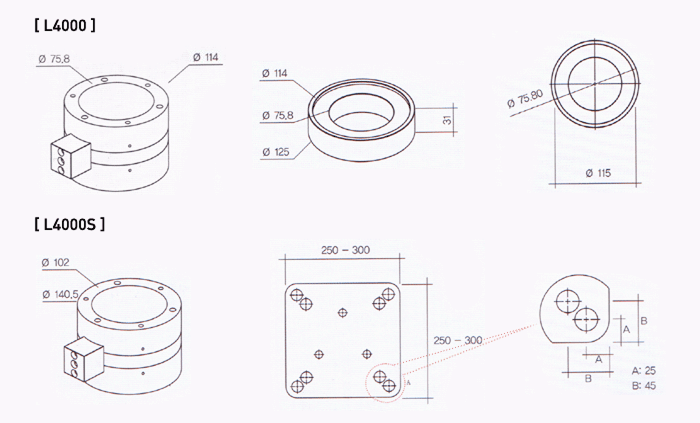

L4000

L4000S
